Design-to-Vector：把 iEDA.ai 流程中的设计状态导出为特征、图与张量，供训练与推理使用。

iMapsynthesisiFPfloorplaniPDNpoweriPLplacementiCTSclockiTOoptimizationiRTroutingiSTAtimingAiEDAdesign dataiPCLlayout modeliMapsynthesisiFPfloorplaniPDNpoweriPLplacementiCTSclockiTOoptimizationiRTroutingiSTAtimingAiEDAdesign dataiPCLlayout model

WHY

为什么需要 Library

没有开放中间态，AI-for-EDA 只能停留在黑盒结果上。Library 把单元、网络、时序路径、拥塞图等变成可版本化的数据接口，让实验可复现、可对比。

对接统一 iDB 状态
服务 Model 与外部训练框架
与论文 J12 AiEDA 同一产品线

design → vector

iDB snapshot
  → net/cell/timing/congestion
  → numpy / graph tensors
  → train or infer

INTRO

Introduction

概念与范围。

打开 INSTALL

Installation

环境与依赖。

打开 USAGE

Getting Started

最小可运行示例。

打开 API

API Interface

接口说明。

打开

An Open-Source AI-Aided Design Library for Design-to-Vector

Overview

AiEDA is an open-source AI-native Electronic Design Automation (EDA) library that revolutionizes chip design workflows by introducing a unified design-to-vector methodology. Built on the iEDA infrastructure, it transforms diverse chip design data into standardized multi-level vector representations through modular engine integration, comprehensive data extraction frameworks, and hierarchical data management. AiEDA bridges traditional EDA tools with modern AI/ML techniques by providing complete physical design flows, programmatic data extraction capabilities, and standardized Python interfaces, establishing an AI-aided design (AAD) paradigm that enables seamless integration between EDA datasets and AI frameworks.

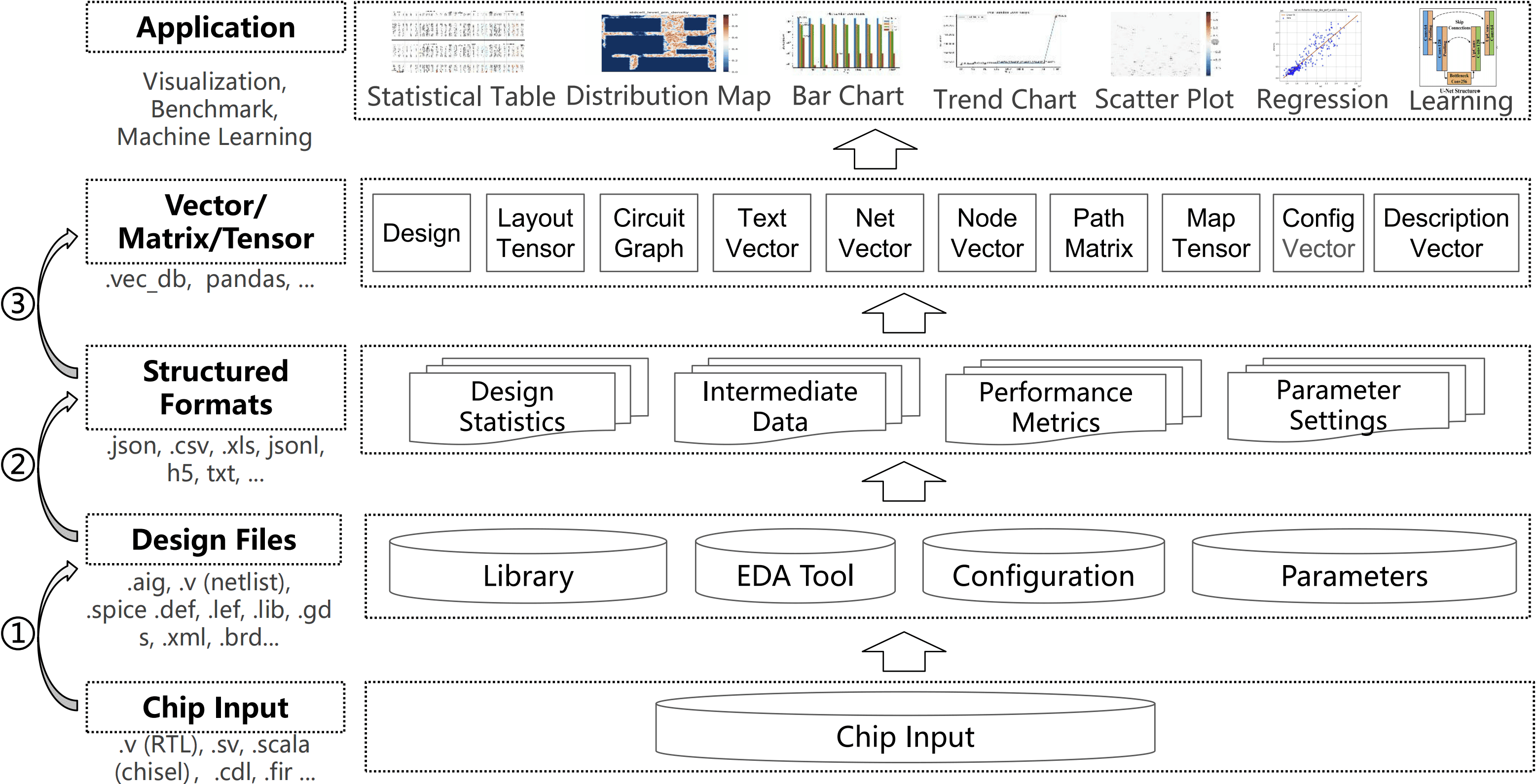

Data Transformation for AI-aided design (AAD)

::: tip Note Github repo: https://github.com/OSCC-Project/AiEDA :::
